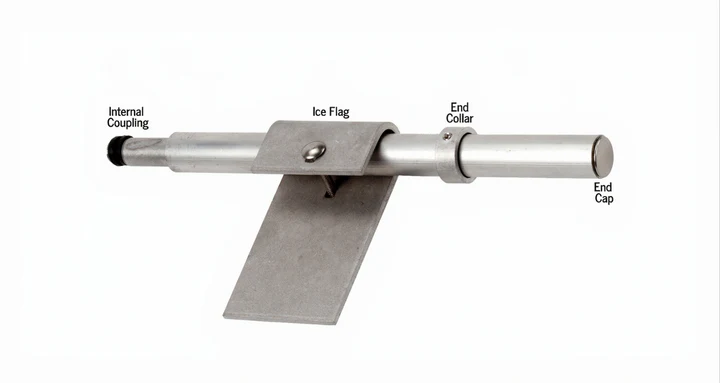

Alpine Pipe-Style Snow Guard Accessories

End Collars (PP65)

End Collars keep the pipes from sliding though the snow guard brackets. An End Collar is required for each end of each pipe on each run of snow guards. A run should not exceed 100' to allow for thermal expansion.

End Caps (PP56)

End Caps keep moisture and insects from getting inside of the pipes.

Internal Couplings (PP86)

Internal Couplings are used to join pipes together and come assembled and ready for installation. Do Not Over-Tighten the bolt prior to inserting the coupling into the pipe, this will cause the gasket to expand and make installation difficult

External Couplings (PP84)

Ice Flags (PP95)

Ice Flags hang from the pipe between the brackets to help keep ice and snow from sliding underneath. Ice Flags should be placed over the top or middle pipe on two-pipe or three-pipe systems.

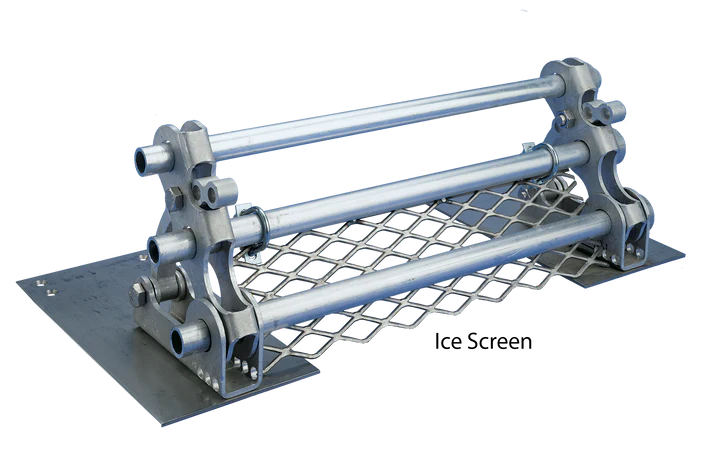

Ice Screen (PP98)

Ice Screens attach to the pipe between the bracket to help keep ice and snow from sliding underneath, they are also typically used on Historical Slate roofs. Ice Screens come in 4’ lengths, 5” high; for most installations it will need to be cut to size to fit between the snow guard brackets.

Pipe

Documentation

• Installation Instructions - Pipe-Style Snow Guard
• Accessories
• PP56 End Cap Cut Sheet
• PP65 End Collar Cut Sheet
• PP84 External Coupling Cut Sheet
• PP86 Internal Coupling Cut Sheet
• PP95 Ice Flag Cut Sheet
• PP98 Ice Screen Cut Sheet
• PP75 Tubing Cut Sheet
• PP84 External Coupling Assembly Sheet
• PP86 Internal Coupling Assembly Sheet
