S-5! Facet Mount
S-5! Facet Mount
$31.47 each
| Quantity | Price |
|---|---|
| 1 to 250 Facet Mounts | $31.47 each |
| 251 or more Facet Mounts | $31.05 each |

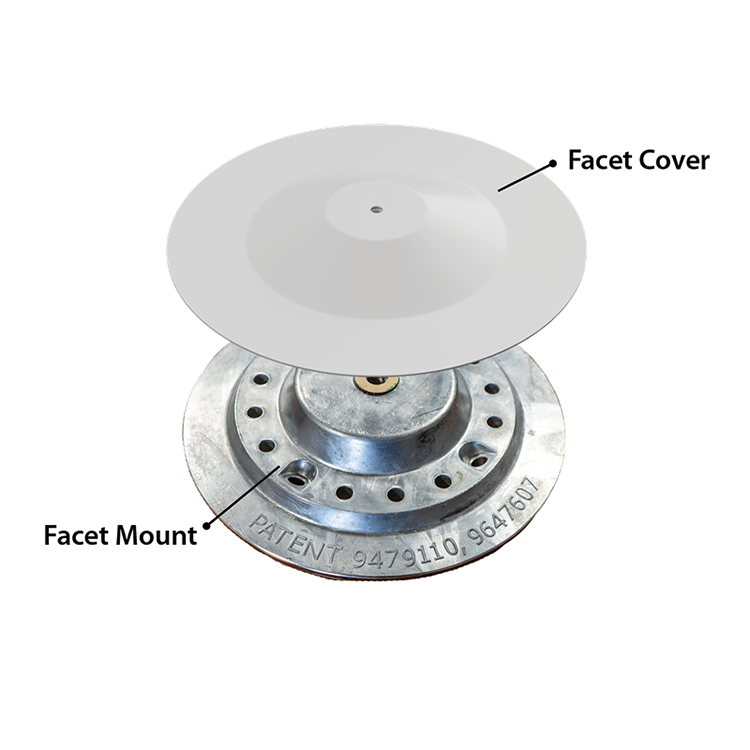

S-5! Facet Mount Cover for TPO & PVC roofs
$12.72 each
| Quantity | Price |
|---|---|
| 1 or more Facet Mount Covers | $12.72 each |
| --- | --- |
For layout and design guidance including complete project cost please
contact Robert Casey at 413-592-0404 or email at rcasey@sno-safe.com
An innovative mounting solution designed for single-ply roofs, including TPO, PVC, KEE and EPDM.
- For single-ply roofs, including TPO, PVC, KEE and EPDM
- Engineered from high-strength cast aluminum
- Diagonal screw holes and 16 potential points of attachment for impressive strength and versatile mounting
- Compatible with virtually every roof material and solar racking on the market
- Non-compressive mount reduces risk of standing water
Facet Applications
- Solar racking
- Wire management
- HVAC
- Satellites
- Plumbing
- Safety Equipment
Meet Facet Mount!
How To Install Facet Mount
How To Install Facet Mount
Quick and Easy Installation
Say goodbye to complicated setups! Facet™ Mount can be installed in under six minutes, including membrane heat welding or fluid-applied flashing. Straightforward, simple installation means crews spend less time on the roof.
Flexible Layout Options
Flexibility is critical when attaching accessories to your single-ply roof! With 12 vertical and four slanted mounting points, you have a total of 16 connection options to meet even the most rigorous engineering specifications. Customize your installation to fit your specific needs!
Engineered, Tested Durability
Made from high-pressure cast aluminum and tested to ASTM E2140, the industry's toughest water penetration standard, Facet™ Mount provides reliable performance and durability.
Unmatched Strength
When it comes to strength, Facet™ Mount stands out with shear strengths up to 6,750 pounds and uplift resistance up to 12,750 pounds, while offering the lowest point loading in its class.
